Genset Cummins Diesel Genset Cummins 4BT3.9-G1 43 Kva

Introduction - For Your Need To Know


Engine  Cummins 4BTA3.9-G2 - Is The Part of Cummins 4 BT family Engine Series, 4 BT series Have 3 Series ; 4B3.9 ; 3.9 Liter\3900 Cc - Naturally Aspirated - Without Turbo ; 4 BT3.9 ; 3900 Liter\3900 Cc - Turbocharged - Without Aftercooled ; 4BTA 3.9 ; 3.9 Liter\3.900cc -  Turbocharged Aftercooled.


Genset Cummins 4BT3.9-G1 43 Kva have been formulated to ensure proper application of generator drive engines in Cummins corporate generator set installations. Genset Cummins 4BT3.9-G1, 43 Kva drive engines are not designed for and shall not be used in variable speed D.C. generator set applications Applicable for supplying emergency power for the duration of the utility power outage. No overload capability is available for this standby rating. Under no condition is an engine allowed to operate in parallel with the public utility at the Emergency Standby Power rating. This rating should be applied where reliable utility power is available. An emergency standby rated engine should be sized for a maximum of an 70% typical load factor and 200 hours of operation per year. This includes a maximum of 1 hour in a 12 hour period at the Emergency Standby Power rating. Emergency Standby rating should never be applied except in true emergency power outages. Negotiated power outages contracted with a util-ity company are not considered an emergency. These Diesel Engine 4BT3.9-G1 have A 40 Kwm@RPM 1500 ( Gross Engine Output at Peak Power ).

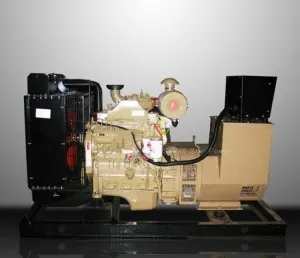

•    Genset Cummins 4BT3.9-G1,  43 Kva Composed of Cummins diesel engine and         Stamford    alternator
•    Engine Charge alternator 24 V
•    Single bearing alternator IP23 , insulation class H
•    40°Cradiator as standard, 45°Cis optional,water-cooled
•    Skid and vibration isolators
•    Dry type air filter, Main line circuit breaker
•    Microprocessor control panel,Key start panel be optional
•    4 pole MCB, 24 V battery, rack and cable
•    8-hour operation base tank
•    SpecialIntegratedSteelBasetankandsprayedoverallin gloss enamel pain
•  Genset Cummins 4BT3.9-G1  43 Kva Optional soundproof or weatherproof canopy,    Industrial or residential silencer be optional.


Genset Cummins 4BT3.9-G1 430 Kva is Cummins Power Generation commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary standby, prime power, and continuous duty applications. Genset Cummins 4BT3.9-G2 43 Kva Heavy-Duty Engine– Rugged 4-cycle industrial diesel delivers reliable power, low emissions and fast response to load changes.


Description:

Introduction -


For your information, Diesel Generator Set ( Genset ) Cummins ini Menggunakan Type Engine 4BT3.9-G1 , Dengan Configurasi 4 cylinder inline Engine. Seri dan type Engine Cummins 4BT3.9-G1 adalah bagian dari 4BT Series Family Engine Cummins yg terdiri 3 Type Engine  Yaitu : 4 B3.9  ; 3.9 liter\3.900cc - Naturally Aspirated - Without Turbo ; 4BT3.9 ; 3.9 Liter\3.900cc - Turbocharged - Without Aftercooled - ; 4BTA3.9 ; 3.9 liter\3.900cc - Turbocharged With Aftercooled,  Dengan Output Power yg Berbeda-beda. Engine 4BT3.9-G1 ini adalah salah  Satu Type Engine dari Cummins yg sangat Handal, Efissien dan Compact dan di lengkapi dengan Turbocharged. Sehingga Kehandalannya ini Sungguh Sangat di akui Oleh Competitornya. Salah Satu Ciri Engine Cummins yg tangguh ini Terbukti Ketika Engine Ini di Beban Pada Peak Power ( 100%) dengan Durasi yg Cukup Lama Tanpa Terjadi Sesuatu. Sehingga Engine Cummins Terkenal Sebagai Engine Heavy Duty. Meskipun Engine ini belum Memenuhi Regulasi Uji Emisi Euro. Akan Tetapi Justru Engine ini Lebih Mudah dan Sangat Simple Perawatannya Sehingga Sangat Menguntungkan Bagi Penggunanya salah satu contohnya adalah ; Untuk Wilayah\Teritori di mana Kualitas BBM-nya Tidak harus Mensyaratkan Dengan Menggunakan Kadar Cetane tinggi dan Sulfur yg Rendah Maka Engine cummins ini pun masih mampu untuk mengkonsumsi Fuel ( Solar ) Dengan tingkat sulfur yg Tinggi ( Masih mampu mengkonsumsi Solar dengan Kualitas yg kurang Bagus ).


Generator Set ini Di Coupled Dengan alternator Stamford. Salah Satu Perusahaan yg Membuat alternator Ternama yang berasal dari Inggris yg Memiliki Reputasi Kelas Dunia yg Sangat Teruji Kehandalannya.





Spec and Data Sheet :


Engine type 4BT3.9-G1 ; Turbo Charged ; 4 cylinder inline ; Direct Injection ; 4 Stroke ; Bore x Stroke 102 x 120 mm ; Displacement 3.9 Liter/3.900 cc ; Compression Ratio 17.3 : 1 ; Oil Capacity 10.9 Liter ; Generator Stamford, 1500 Rpm, 50 Hz, 220/380 Volt, 3 Phase, Pf 0,8 dengan kapasitas 43 Kva Prime rating atau 38 Kw Prime Rating.


Scoupe Of Supply :


Digital control panel by deepsea or Similar, MCCB, muffler, flexible muffler, daily tank, battery with cable battery, Certificate Of Origin, Manual Book.


Warranty :


Garansi 1 tahun / 2000 jam operasi mana yang tercapai terlebih dahulu dan semua unit yg kami delivery sudah dilakukan test loadbank Di Workshop sebagai Standard Operasional Prosedure.



Harga :







Detail Price and Specification By Requested
