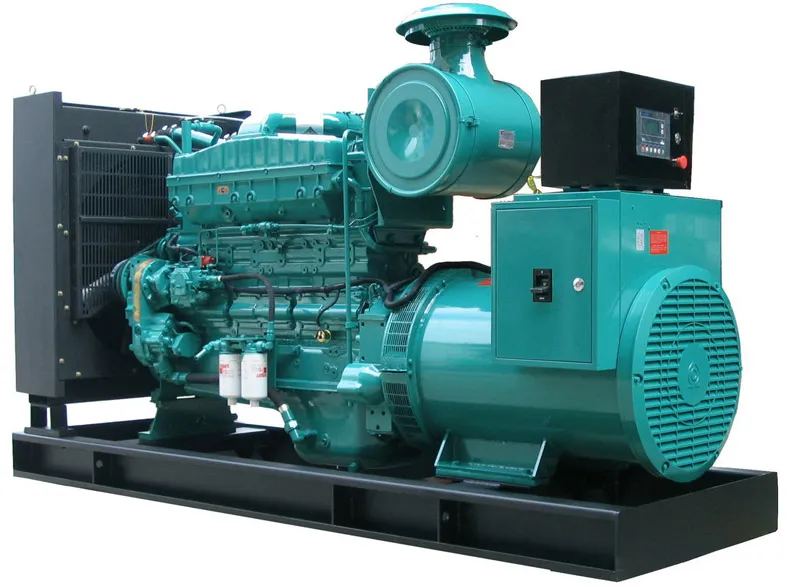

Genset Cummins Diesel Genset Cummins NT855-GA 250 Kva

Introduction - For Your Need To Know

The Cummins NT-Series engines have been service proven through millions of hours of operation in some of the world’s most demanding applications. The 14 litre, six cylinder NTA855 has been engineered to handle higher injection pressures, with redesigned overhead arrangement, pistons, crankshaft and camshaft. A gear train with high contact ratio spur gears also eliminates unwanted thrust loads and reduces noise.

Genset Cummins NT 855-GA 250 Kva Power Generation commercial generator sets are fully integrated power generation systems providing optimum performance, reliability and versatility for stationary standby and prime power applications Genset Cummins NT 855 GA 250 Kva heavy-duty engine - Rugged 4-cycle, industrial diesel delivers reliable power, low emissions and fast response to load changes. This Diesel Engine NT 855-GA Have A 254 Kwm@RPM 1500 ( Gross Engine Power Output ) at Peak Performance ( 110%).



● Composed of Genset Cummins NT855-GA   250 Kva diesel engine and Stamford or MPMC alternator
● 24V DC start motor and storage battery
● Brushless, Self-excited, IP23, insulation class H alternator
● 40°C radiator as standard, 50°C is optional
● Key start panel control system as standard, digital auto-start panel is optional
● 8-hour operation base tank
● Optional open type or silent type
● Genset Cummins NT855-GA   250 Kva sets are gone through rigorous testing before  being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop).


Description:

Introduction -


For your information, Diesel Generator Set ( Genset ) Cummins ini Menggunakan Type Engine NT 855 GA , Dengan Configurasi 6 cylinder inline Engine. Seri dan type Engine Cummins NT 855 GA ini  adalah salah satu varian Engine Dari Family Engine NT  Series , Di mana Family Engine Cummins  NT  Series ini terdiri dari  3 Type Engine dan 6  varian Engine yg berbeda  Output Power Yaitu : NT 14.0 Liter\14.000 cc - TurboCharged - Without Aftercooled ; NTA 14.0 Liter\14.000cc - Turbocharged -With Aftercooled ; dan NTAA 14.0 Liter\14.000cc -Turbo Charged -  Air to Air Charged Cooled. Type Engine NT 855 GA dari Line up Engine Cummins ini sangat Handal, Efissien dan Compact, serta dilengkapi dengan Turbocharged Sehingga membuat engine ini Kehandalannya  Sungguh Sangat di akui Oleh Competitornya. Salah Satu Ciri Engine Cummins NT Series ini adalah  Durability yg tangguh dan Powernya yg Konsisten. Ini Terbukti Ketika Engine Ini di Beban Pada Peak Power ( 100%) dengan Durasi yg Cukup Lama Tanpa Terjadi Sesuatu. Sehingga Engine Cummins Terkenal Sebagai Engine Heavy Duty. Meskipun Engine ini belum Memenuhi Regulasi Uji Emisi Euro. Akan Tetapi Justru Engine ini Lebih Mudah dan Sangat Simple Perawatannya Sehingga Sangat Menguntungkan Bagi Penggunanya, salah satu contohnya adalah ; Untuk Wilayah\Teritori di mana Kualitas BBM-nya Tidak harus Mensyaratkan Dengan Menggunakan Kadar Cetane tinggi dan sulfur Yg Rendah maka Engine cummins ini pun masih mampu untuk mengkonsumsi Fuel ( Solar ) Dengan tingkat sulfur yg Tinggi ( Masih mampu mengkonsumsi Solar dengan Kualitas yg kurang Bagus ).


Generator Set ini Di Coupled Dengan alternator Stamford. Salah Satu Perusahaan yg Membuat alternator Ternama yang berasal dari Inggris yg Memiliki Reputasi Kelas Dunia yg Sangat Teruji Kehandalannya.


Spec and Data Sheet :


Engine type NT 855-GA ; Turbocharged ; 6 cylinder inline ; Direct Injection ; 4 Stroke ; Bore x Stroke 140 x 152 mm ; Displacement 14.0 liter\14.00cc ; Compression Ratio 15.01 ; 1 ; Oil Capacity ( Pan Oil ) 36 Liter ;  Generator Stamford, 1500 Rpm, 50 Hz, 220/380 Volt, 3 Phase, Pf 0,8 ; dengan kapasitas 250 Kva Prime rating atau 200 Kw Prime Rating.


 Scoupe Of Supply :


Digital include control panel by deepsea or Similar MCCB, muffler, flexible muffler, daily tank, battery with cable battery, Certificate Of Origin, Manual book.


Warranty :


Garansi 1 tahun / 2000 jam operasi mana yang tercapai terlebih dahulu dan semua unit yg kami delivery Sebelumnya sudah dilakukan test loadbank di Workshop Kami sebagai Standard Operasional Prosedur.



Harga :







Detail Price and Specification By Requested
