Genset Bekas Caterpillar Genset Caterpillar 200 Kva Bekas ( 200 Kva ) tahun 2005
Introduction - For Your Need to know :

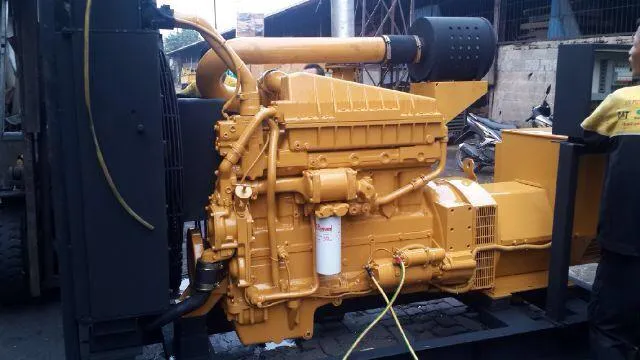

These Used Genset Caterpillar Using Engine Type 3306C ; Open Type ; Capacity 200 Kva. This Type Engine Caterpillar is the Part of 3300 Series Family Engine ; With 6 Cylinder Inline Engine ; 4 Stroke ; 10.4 Liter\10.400cc is the Big Displacement make this Engine Have A durabillity, Strong Power and Torsion in A Every moment that you need a More Power.
3300 Family Engine Caterpillar are Very Well Known In The World because of Durability, Strong Power and Easy To Maintenance. So That Why Caterpillar 3300 Series oftenly Use at the Remote Area such like as : In The Forrest ; Minning ; Off Shore Oil Drilling. And Until now Caterpillar 3300 Family Engine Still Produce Because of any Demand Market.
History ( Back Ground ) of the Genset\ Diesel Generator Set :
Year Of Manufacturing 2005 ; Eks Stand By Unit Building\Apartemen (Back up Power Only) ; Low Hour Operations ; Original Analog Control Panel ; Build Up From United States ; Big Radiator Multiply Core ; In Good and Clean Condition ; Ready Prepare For Test Load Bank\Perfomance and Ready to Apply For that meet Your Power Electrical Requirement.
Detail Specification and Data Sheet :
Engine 3306C ; Turbocharged, Air-to-Air Charged Cooled ; 6 Cylinder Inline Engine ; Direct Injection ; 4 Stroke ; 4 Valve\Cylinder ; Mechanical Unit Injector ( MUI ) ; Governor By Woodward : Bore x Stroke : 121 x 152 mm ; Displacement : 10.4 Liter \10.400 cc ; Compression Ratio 10.4 : 1 ; Oil Capacity 38.8 liter ; Watercooled ; Generator Original Caterpillar ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8. With Capacity 200 Kva Prime Rating or 160 Kw Prime Rating.
Scoupe of Supply :
Analog Control Panel or Digital Control Panel By EMCP 4.2 ( As an Optional Original Accesories ), Smartgen ( As an Optional Aftermarket Accesories ) ; Industrial Muffler c\w Flexible Muffler ; New Battery c\w cable battery ; Without MCCB And Daily Tank as an accesories ; New Painting Colour like an Original Paint ( Yellow CAT ) or We can Change The Paint of Colour according to customer request ; Performance Test By Using Load Bank\Dummy Load equipment at Workshop.
Warranty :
3 ( Three ) Month or 500 Hour Operations Which ever come First Since Delivery unit ; Include Service Of Labour, Without Parts and Exclude Any Damages of this Genset if There is an Operational Error Occurs on site or Force Major.
Note And Important Information Related of This Unit
Engine Condition :
Hour Meter 7.350 Hour ( Before Periodical Service ), And Already Inspection, Assement, and Servicing Covers All of Genset : for Leaking oil ; Van Belt ; Alternator Charging ; Generator Merge Test ; Function Test of Device Protection Panel Control : Rewiring Cable Hardness ; Injector and FIP ( Fuel Injector Pump ) Calibration ; Replacement : Piston ; Piston Ring ; Liner ; Conrod Bearing ; Main Bearing ; Turbo ; Valve ; Spring Valve Etc ( Already General Overhaul - GO ). In Accordance With The Caterpillar manual Maintenance Procedure.
Replacement : Engine Oil ; Oil Filter ; Fuel Filter ; Air Filter and any Other Parts While it Find Damages and Replacement. Crankshaft and Camshaft Both Of Them it Already Inspection, Assesment and Re-measurent and Still Standard Size Accordance From the Caterpillar manufacturing.
Perfomance :
80 % Load from The Brand New Genset Capacity - Brand New Capacity load is : 200 Kva \160 Kw or 242 Ampere @1500RPM ; 100% Load ). And The 80% Peak Power that it must be Achieved When the Unit Tested is ( The Calculation of Peak Power 80% Load - Genset Second ) : 200 kva x 0,8 (pf) = 160 Kw x 0,8 ( 80% ; Because of Second Hand Unit ) = 128 Kw or 193 Ampere ; ( 128 Kw : 0,66 = 193 Ampere ) ; ( 0,66 Result from √3 ; 3 is 3 Phase ) This is The Formulas to Calculation a Peak Power\Performance - Second Hand Genset.
229 Kw or 339 Ampere is the test result a Peak Power of Genset Second, that It be a Promise must be achieved While tested with the loadbank & Loadbank Equipment Using A heater and Cooling Van, that have load Characteristic Resistive and Inductive with have 1 Cosphi ( Pf ).
Description:
Introduction :
For Your Information Diesel Generator ( Genset ) Bekas Tersebut di atas Berkapasitas 200 Kva Prime Rating\160 kw ; Open Type dan menggunakan Engine Caterpillar 3306C. Dimana Type Engine Tersebut menjadi salah satu line up dalam family Engine 3300 Series Caterpillar dengan configurasi 6 Cylinder Inline Engine ; Displacement 10.4 liter\10.400cc. Sehingga membuat Engine ini Memiliki Power output dan Torsi yg besar di semua lini mulai dari torsi bawah sampai Torsi Puncak.
3300 Series Caterpillar adalah Salah Satu Line up Engine yg Sangat Terkenal di Dunia dengan berbagai Macam Aplikasi Penggunaan spt : Heavy Equipment ( Haul Truck ; Excavator ; Buldozer etc ) ; IOPU ( Industrial Open Power Unit ) - Pompa Air ; Pompa Minyak ; Engine Driven drilling Etc ; Power Electrical ( Diesel Generator Set ). Dan Sdh Terbukti dengan Durabililty - nya ; Power Yg Besar di Kelasnya ; dan Perawatan yg mudah.
Oleh Krn itu 3300 Series Caterpillar seringkali di Gunakan di Daerah Remote Area spt di Hutan ; Lahan Pertambangan ; Pengeboran Minyak Lepas Pantai dsb. Dan Hingga hari ini 3300 Series Caterpillar ini masih di Produksi krn Market Demand nya masih tinggi.
History ( Back Ground ) Dari Genset Tersebut Di atas :
Tahun Produksi 2005 ; Bekas Pemakaian Gedung\Apartemen dan Hanya Sebagai Backup Power saja dengan Perawatan Berkala yg Rutin ; Hour Operation Masih Rendah ; Original Analog Control Panel ; Builld Up From USA ; Radiator yg Besar dan Multiply core ; Dalam Kondisi Prima dan sangat Terawat\bersih ; Siap untuk Test Run dan Loadbank\Performance dan Di Pakai untuk Menjawab Kebutuhan Power.
Detail Specification and Data Sheet :
Engine 3306C ; Turbocharged, Air-to-Air Charged Cooled ; 6 Cylinder Inline Engine ; Direct Injection ; 4 Stroke ; 4 Valve\Cylinder ; Mechanical Unit Injector ( MUI ) ; Governor By Woodward ; Bore x Stroke : 121 x 152 mm ; Displacement : 10.4 Liter \10.400cc ; Compression Ratio 10.4 : 1 ; Oil Capacity 38.8 liter ; Watercooled ; Generator Original Caterpillar ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8. Dengan Kapasitas 200 Kva Prime Rating atau 160 Kw Prime Rating.
Scoupe of Supply :
Analog Control Panel atau Digital Control Panel By EMCP 4.2 ( Sebagai Opsi tambahan Accesories Original Caterpillar ) ; Smart Gen ( Sebagai Opsi tambahan Produk Aftermarket ) ; Sebagai Opsi Tambahan; Industrial Muffler c\w Flexible Muffler ; New Battery c\w cable battery ; Without MCCB And Daily Tank as an accesories ; Sdh Di Painting Ulang sesuai Dengan Warna Pabrikan aslinya ( Yellow CAT ) atau Bisa Di Rubah Warna Catnya sesuai dengan Permintaan Customer ; Performance Test dengan Menggunakan Loadbank\Dummy Load di Workshop.
Garansi :
3 ( Tiga ) Bulan atau 500 Jam Operasional Mana Yg Tercapai Terlebih Dahulu Sejak Unit Di Kirim. Dan Cover Garansi Hanya Jasa Only di Luar Spare Part dan Tidak Termasuk dengan Kerusakan Genset yg Disebabkan oleh Kesalahan Operasional di Site maupun Force major.
Note And Important Information Related of This Unit
Engine Condition :
Hours Meter Sebelum Di Lakukan Perawatan Berkala di Workshop adalah 7.350 Jam Dan Sudah di lakukan Inspection, Assesment dan Perawatan yg Meliputi : Kebocoran Oli, Kelayakan van Belt ; Alternator Charging ; Merge Test Generator ; Test Fungsi Proteksi Keamanan dari Panel Control ; Pengkabelan Ulang Wiring Hardness ; Injector, FIP, ( Fuel Injection Pump ) dan Turbo Sdh Di kalibrasi Ulang ; Penggantian Piston ; Ring Piston ; Liner ; Conrod Bearing ; Main Bearing ; Valve Spring Valve ( Sudah General Overhaul - GO ). dll Sesuai Dengan Instruksi manual Caterpillar Prosedure.
Penggantian : Oli Mesin ; Filter Oli ; Filter Solar dan Filter Udara dan Parts yg lain ketika di temukan kerusakan dan di ganti. Cranshaft ( Kruk As ), dan Camshaft ( Cam ) masih Standard Size ( Blm Oversize ) dan sdh Di Inspection, Assesment dan Di Ukur Ulang Disesuaikan dengan Standard Pabrikan Caterpillar.
Perfomance :
Beban 80 % Dari Kapasitas Genset Baru ( Kapasitas Genset Baru 200 Kva\160 Kw atau 242 Ampere Pada RPM 1.500 : 100% load ) dan 80 % Beban Puncak Genset Bekas harus Tercapai ketika Di Test Load Bank dengan Perhitungan Beban adalah sbb : 200 Kva x 0,8 ( Pf ) = 160 Kw x 0,8 ( 80 % : Beban maksimal Genset Bekas ) = 128 Kw atau 193 Ampere. Nilai 193 Ampere Di Dapat dari 128 Kw : 0,66 ( 0,66 adalah Hasil Dari akar √3 dan 3 adalah 3 Phase ). Dan ini adalah Rumus atau Formula untuk Menghitung Nilai Beban Puncak - Genset Second.
128 Kw atau 193 Ampere adalah Hasil Test dari Beban Puncak Genset Second Yg Harus Tercapai Dan Di Janjikan ketika Genset Tersebut di Test Dengan LoadBank dan LoadBank itu sendiri Menggunakan Pemanas ( Heater ) Dan Kipas Sebagai Pendingin Heater yg Memiliki karakteristik beban Induktif dan Resistif dengan Cosphi 1. ( Pf 1 ).
Harga :
For Further Information The Detail Price By Requested and Detail Tehnical Specification, You Can Click The Title Below That Picture\Photo - Untuk Informasi Lebih Lanjut mengenai Harga dapat Menghubungi Kami Via Contact\Whatsapp ( WA ) dan Untuk Spesifikasi Tehnis anda dapat klik pada judul di Bawah Foto.
