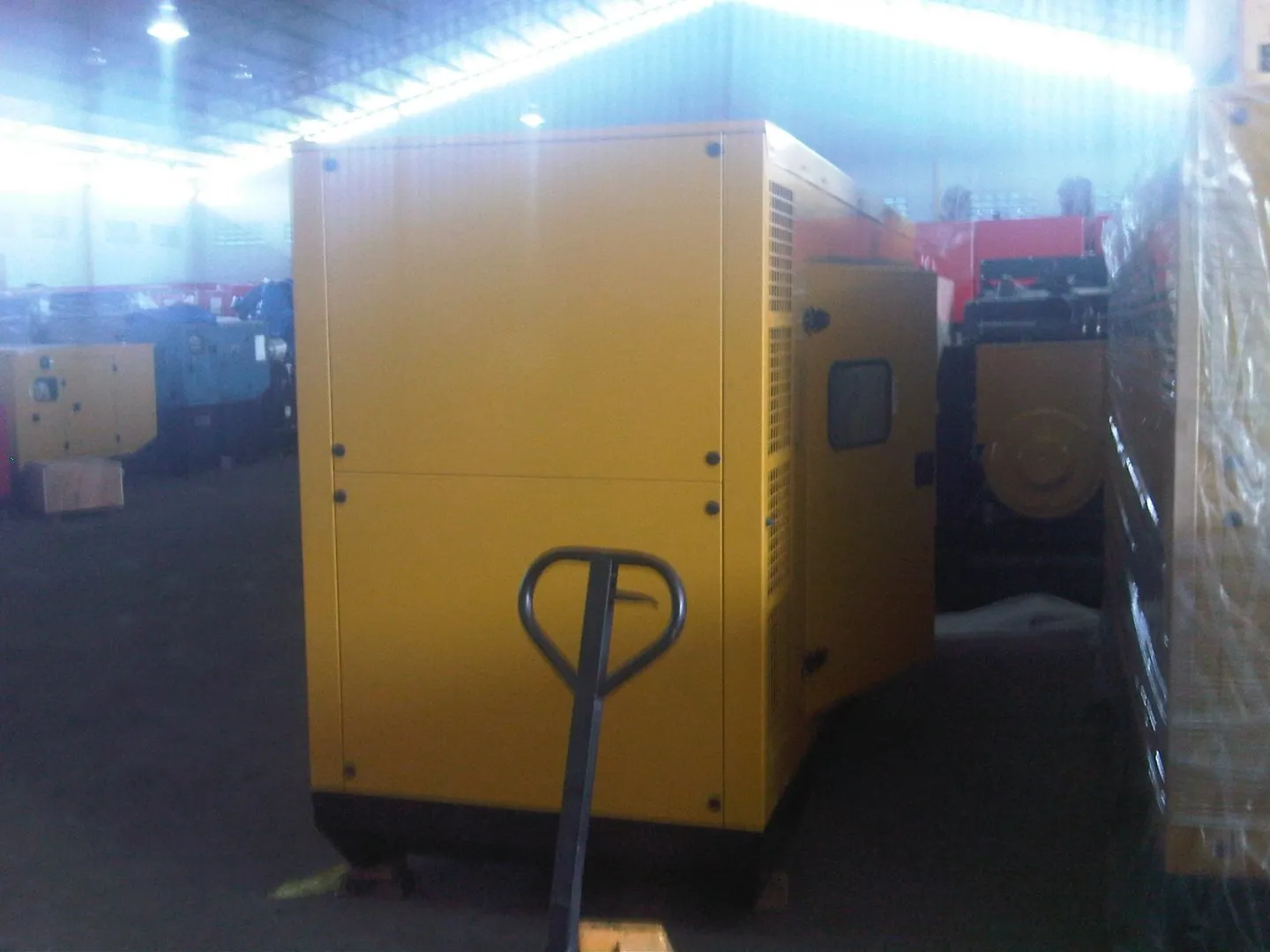

Genset Bekas Perkins Diesel Genset Perkins 1106 A - 70 TAG2 + Stamford 150 Kva Tahun 2015 Silent Type
Introduction - For Your Need to know :
These Used Genset Perkins Using Engine Type 1106A-70TAG2, Capacity 150 Kva. This Type Engine Perkins is the Part of 1100 Series Family Engine ; With 6 Cylinder Inline Engine ; 7.01 liter\7.000cc is Small Enough Displacement Than The Competitor But Any One Value make this Engine Exellence Than The Other is : This Engine Already Be Equipped With ECM ( Electronic Control Modul ) to Managed Power, Fuel, Combustion System and Etc. So That Make This Diesel Engine ( 1106A-70TAG2 ) Have A Strong Power, and Torsion, in A Every moment that you need a More Power But Still Consist Fuel Efficient When it Operate. And That You Need to know, Perkins 1100 Series Is the Well Known Engine In The World Because Of Durability, Performance, and Efficient.
History ( Back Ground ) of the Genset\ Diesel Generator Set :
Year Of Manufacturing 2015 ; Eks Stand By Office (Back up Power Only) ; Low Hour Operations ; Original Digital Control Panel By deepsea ; Build Up Silent Type From UK ; Coupled In China ; ; In Good and Clean Condition ; Ready Prepare For Test Load Bank\Perfomance and Ready to Apply For that meet Your Power Electrical Requirement.
Detail Specification and Data Sheet :
Engine 1106A-70TAG2 ; Turbocharged, Air-to-Air Charged Cooled ; 6 Cylinder Inline Engine; Direct Injection ; 4 Stroke ; Bore x Stroke : 105 x 135 mm ; Displacement : 7.01Liter\7.000cc ; Compression Ratio 16.0 : 1 ; Oil Capacity 16.5 liter ; Watercooled ; Generator Stamford ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8. With Capacity 150 Kva Prime Rating or 120 Kw Prime Rating.
Scoupe of Supply :
Digital Control Panel for Genset Controller By Deepsea ; Build Up Silent Type ; Industrial Muffler c\w Flexible Muffler ; New Battery c\w cable battery ; With MCCB And Daily Tank as an accesories ; New Painting Colour like an Original Paint or We can Change The Paint of Colour according to customer request ; Performance Test By Using Load Bank\Dummy Load equipment at Workshop.
Warranty :
3 ( Three ) Month or 500 Hour Operations Which ever come First Since Delivery unit ; Include Service Of Labour, Without Parts and Exclude Any Damages of this Genset if There is an Operational Error Occurs on site or Force Major.
Note And Important Information Related of This Unit
Engine Condition :
Hour Meter 5.500 Hour ( Before Periodical Service ), And Already Inspection, Assement, and Servicing Covers All of Genset : for Leaking oil ; Van Belt ; Alternator Charging ; Generator Merge Test ; Function Test of Device Protection Panel Control : Rewiring Cable Hardness ; Injector and FIP ( Fuel Injector Pump ) Calibration ; Turbo, Etc. In Accordance With The Perkins manual Maintenance Procedure. Replacement : Engine Oil ; Oil Filter ; Fuel Filter ; Air Filter and any Other Parts While it Find Damages and Replacement. Crankshaft and Camshaft Both Of Them it Already Inspection, Assesment and Re-measurent and Still Standard Size Accordance From the Perkins manufacturing.
Perfomance :
80 % Load from The Brand New Genset Capacity - Brand New Capacity load is : 150 Kva \120 Kw or 181 Ampere @1500RPM ; 100% Load ). And The 80% Peak Power that it must be Achieved When the Unit Tested is ( The Calculation of Peak Power 80% Load - Genset Second ) : 150 kva x 0,8 (pf) = 120 Kw x 0,8 ( 80% ; Because of Second Hand Unit ) = 96 Kw or 145 Ampere ; ( 96 Kw : 0,66 = 145 Ampere ) ; ( 0,66 Result from √3 ; 3 is 3 Phase ) This is The Formulas to Calculation a Peak Power\Performance - Second Hand Genset.
96 Kw or 145 Ampere is the test result a Peak Power of Genset Second, and that It be a Promise must be achieved While tested with the loadbank ; Loadbank Equipment Using A heater and Cooling Van, that have load Characteristic Resistive and Inductive with have 1 Cosphi ( Pf ).
Description:
Introduction :
For Your Information Diesel Generator ( Genset ) Bekas Tersebut di atas Berkapasitas 150 Kva Prime Rating\120 kw dan menggunakan Engine Perkins Type 1106A-70TAG2. Dimana Type Engine Tersebut menjadi salah satu line up dalam family Engine 1100 Series Perkins dengan configurasi 6 Cylinder Inline ; Displacement 7.01 liter\7.000cc. Sehingga membuat Engine ini Memiliki Power output dan Torsi yg besar di semua lini mulai dari torsi bawah sampai Torsi Puncak. Hal ini sebabkan krn Penggunaan Turbocharged Air-to-Air Chargedcooled. Di Coupled dengan Stamford, Sebuah Perusahaan Generator Kelas Dunia yg sdh Terkenal dengan Reputasinya membuat Genset ini menjadi sangat Durable, Strong dan Effisien. Durable, Strong Dan Effisien Krn Engine Type 1106A-70TAG2 ini Sdh Di Lengkapi dengan ECM ( Electronic Control Modul ) dan berbagai macam Sensor sebagai Support kepada ECM ; yg Fungsinya adalah Mengatur Supply Bahan bakar dan Pembakaran Engine Sehingga Ketika Engine ini sedang Beroperasional Supply Bahan bakar dan Pembakaran di sesuaikan dengan Power yg di Butuhkan.
History ( Back Ground ) Dari Genset Tersebut Di atas :
Tahun Produksi 2015 ; Bekas Pemakaian Office dan Hanya Sebagai Backup Power saja dengan Perawatan Berkala yg Rutin ; Hour Operation Masih Rendah ; Original Control Panel By Deepsea ; Genset Tersebut di atas Di Coupled dan di Assembly di China, Sedangkan COO ( Cerficate Of Origin ) Engine ini Dari United Kingdom ; Dalam Kondisi Prima dan sangat Terawat\bersih ; Siap untuk Test Run dan Loadbank\Performance dan Di Pakai untuk Menjawab Kebutuhan Power.
Detail Specification and Data Sheet :
Engine 1106A-70TAG2 ; Turbocharged, Air-to-Air Charged Cooled ; 6 Cylinder Inline Engine ; Direct Injection ; 4 Stroke ; Bore x Stroke : 105 x 135 mm ; Displacement : 7.01 liter\7.000cc ; Compression Ratio 16.0 : 1 ; Oil Capacity 16.5 liter ; Watercooled ; Generator Stamford ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8. Dengan Kapasitas 150 Kva Prime Rating atau 120 Kw Prime Rating.
Scoupe of Supply :
Digital Control Panel By Deepsea ( Original ) ; Silent Type Build Up ; Industrial Muffler c\w Flexible Muffler ; New Battery c\w cable battery ; With MCCB And Daily Tank as an accesories ; Sdh Di Painting Ulang sesuai Dengan Warna Pabrikan aslinya atau Bisa Di Rubah Warna Catnya sesuai dengan Permintaan Customer ; Performance Test dengan Menggunakan Loadbank\Dummy Load di Workshop.
Garansi :
3 ( Tiga ) Bulan atau 500 Jam Operasional Mana Yg Tercapai Terlebih Dahulu Sejak Unit Di Kirim. Dan Cover Garansi Hanya Jasa Only di Luar Spare Part dan Tidak Termasuk dengan Kerusakan Genset yg Disebabkan oleh Kesalahan Operasional di Site maupun Force major.
Note And Important Information Related of This Unit
Engine Condition :
Hours Meter Sebelum Di Lakukan Perawatan Berkala di Workshop adalah 5.500 Jam Dan Sudah di lakukan Inspection, Assesment dan Perawatan yg Meliputi : Kebocoran Oli, Kelayakan van Belt ; Alternator Charging ; Merge Test Generator ; Test Fungsi Proteksi Keamanan dari Panel Control ; Pengkabelan Ulang Wiring Hardness ; Injector, FIP, ( Fuel Injection Pump ) dan Turbo Sdh Di kalibrasi Ulang, dll Sesuai Dengan Instruksi manual Perkins Prosedure ; yg Sdh Di Ganti adalah : Oli Mesin ; Filter Oli ; Filter Solar dan Filter Udara dan Parts yg lain ketika di temukan kerusakan dan di ganti. Cranshaft ( Kruk As ), dan Camshaft ( Cam ) masih Standard Size ( Blm Oversize ) dan sdh Di Inspection, Assesment dan Di Ukur Ulang Disesuaikan dengan Standard Pabrikan Perkins.
Perfomance :
Beban 80 % Dari Kapasitas Genset Baru ( Kapasitas Genset Baru 150 Kva\120 Kw atau 181 Ampere Pada RPM 1500 : 100% load ) dan 80 % Beban Puncak Genset Bekas harus Tercapai ketika Di Test Load Bank dengan Perhitungan Beban adalah sbb : 150 Kva x 0,8 ( Pf ) = 120 Kw x 0,8 ( 80 % : Beban maksimal Genset Bekas ) = 96 Kw atau 145 Ampere. Nilai 145 Ampere Di Dapat dari 96 Kw : 0,66 ( 0,66 adalah Hasil Dari akar √3 dan 3 adalah 3 Phase ). Dan ini adalah Rumus atau Formula untuk Menghitung Nilai Beban Puncak - Genset Second.
96 Kw atau 145 Ampere adalah Hasil Test dari Beban Puncak Genset Second Yg Harus Tercapai Dan Di Janjikan ketika Genset Tersebut di Test Dengan LoadBank dan LoadBank itu sendiri Menggunakan Pemanas ( Heater ) Dan Kipas Sebagai Pendingin Heater yg Memiliki karakteristik beban Induktif dan Resistif dengan Cosphi 1. ( Pf 1 ).
Harga :
For Further Information The Detail Price By Requested and Detail Tehnical Specification, You Can Click The Title Below That Picture\Photo - Untuk Informasi Lebih Lanjut mengenai Harga dapat Menghubungi Kami Via Contact\Whatsapp ( WA ) dan Untuk Spesifikasi Tehnis anda dapat klik pada judul di Bawah Foto
