Genset Bekas Mitsubishi Genset Bekas Mitsubishi S12A PTAA - 800 Kva
Introduction - For Your Need to know :

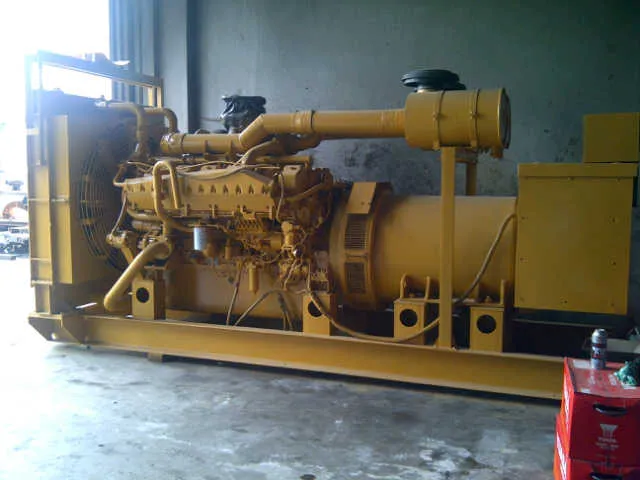

These Used Genset Using Engine Mitsubishi Type S12A-PTAA ; Open Type ; Capacity 800 Kva\640 Kw. This Type Engine Mitsubishi is the Part of S12A Series Family Engine ; With 12 Cylinder 60° Vee Engine ; 4 Stroke ; 33.93 Liter\33.000 cc is Big Enough Displacement make this Engine have A durabillity, Strong Power and Torsion in A Every moment that you need a More Power. Mitsubishi S12A Series Family Engine Have Many Different Type With many Different Power That You Need Between Turbocharged Without Intercooler or With Intercooler.
And Just For You Must To Know ; In The Beginning This Engine are design and Built For Industrial Engine, Especially For Genset. And This Engine Are Still Use Mechanical Fuel System So That More Easy To Maintenance and Service.
But Along With The Time, This Engine Also Use for : Boat Fishing ; Commercial Ship For Main Engine Propeler ; Genset For Ship ; Landmill Genset ; Industrial Diesel Engine For Waterpump, Mudpump Etc.
This Engine Can Use\Applicable in Many Equipment or Needed Because Of Many Reason ; but One of Famous Reason is ; This Engine are Very Simple To Modified ; Maintenance and Service Because The Spare Part Of Engine very Easy to Find in Many Place though in Remote Area.
History ( Back Ground ) of the Genset\ Diesel Generator Set :
Year Of Manufacturing 2006 ; Eks Manufacturing Plant ; Low Hour Operations ; Original Digital Control Panel ; Big Radiator Multiply Core ; Local Couple ; In Good and Clean Condition ; Ready Prepare For Test Load Bank\Perfomance and Ready to Apply For that meet Your Power Electrical Requirement.
Detail Specification and Data Sheet :
Engine S12A-PTAA ; Turbocharged Air-to-Water With Intercooler ; 12 Cylinder 60° Vee Engine ; Direct Injection ; 4 Stroke ; 4 Valve\Cylinder ; Mechanical Unit Injector ( MUI ) ; Governor By Toho/Woodward : Bore x Stroke : 150 x 160 mm ; Displacement : 33.93 Liter \33.000 cc ; Compression Ratio 14.5 : 1 ; Oil Capacity 140 liter ; Watercooled ; Generator Leroy Somer ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8. With Capacity 800 Kva Prime Rating or 640 Kw Prime Rating.
Scoupe of Supply :
Analog Control Panel or Digital Control Panel By Deepsea ( As an Optional Aftermarket Accesories ) ; Industrial Muffler c\w Flexible Muffler ; New Battery c\w cable battery ; Without MCCB And Daily Tank as an accesories ; New Painting Colour like an Original Paint or We can Change The Paint of Colour according to customer request ; Performance Test By Using Load Bank\Dummy Load equipment at Workshop.
Warranty :
3 ( Three ) Month or 500 Hour Operations Which ever come First Since Delivery unit ; Include Service Of Labour, Without Parts and Exclude Any Damages of this Genset if There is an Operational Error Occurs on site or Force Major.
Note And Important Information Related of This Unit
Engine Condition :
Hour Meter 7.150 Hour ( Before Periodical Service ), And Already Inspection, Assement, and Servicing Covers All of Genset : for Leaking oil ; Van Belt ; Alternator Charging ; Generator Merge Test ; Function Test of Device Protection Panel Control : Rewiring Cable Hardness ; Injector and FIP ( Fuel Injector Pump ) Calibration ; In Accordance With The Mitsubishi manual Maintenance Procedure.
Replacement : Engine Oil ; Oil Filter ; Fuel Filter ; Air Filter and any Other Parts While it Find Damages and Replacement. Crankshaft and Camshaft Both Of Them it Already Inspection, Assesment and Re-measurent and Still Standard Size Accordance From the Mitsubishi manufacturing.
Perfomance :
80 % Load from The Brand New Genset Capacity - Brand New Capacity load is : 800 Kva \640 Kw or 969 Ampere @1500RPM ; 100% Load ). And The 80% Peak Power that it must be Achieved When the Unit Tested is ( The Calculation of Peak Power 80% Load - Genset Second ) : 800 kva x 0,8 (pf) = 640 Kw x 0,8 ( 80% ; Because of Second Hand Unit ) = 512 Kw or 775 Ampere ; ( 512 Kw : 0,66 = 775 Ampere ) ; ( 0,66 Result from √3 ; 3 is 3 Phase ) This is The Formulas to Calculation a Peak Power\Performance - Second Hand Genset.
512 Kw or 775 Ampere is the test result a Peak Power of Genset Second, that It be a Promise must be achieved While tested with the loadbank & Loadbank Equipment Using A heater and Cooling Van, that have load Characteristic Resistive and Inductive with have 1 Cosphi ( Pf ).
Description:
Introduction :
For Your Information Diesel Generator ( Genset ) Bekas Tersebut adalah Mitsubishi Berkapasitas 800 Kva Prime Rating\640 kw ; Open Type dan menggunakan Engine Mitsubishi Type S12A-PTAA. Dimana Type Engine Tersebut menjadi salah satu line up dalam family Engine S12A Series Mitsubishi dengan configurasi 12 Cylinder 60° Vee Engine ; Displacement 33.93 liter\33.000cc. Sehingga membuat Engine ini Memiliki Power output dan Torsi yg besar di semua lini mulai dari torsi bawah sampai Torsi Puncak dan Konsumsi bahan bakar yg tetap Effisien. Mitsubishi S12A Series Family Memiliki Banyak varian yg Berbeda mulai baik yg Turbocharged Tanpa Intercooler maupun Turbocharged Intercooler.
Perlu Di Ketahui Engine Mitsubishi S12A Series ini Di Desain dan Di bangun untuk Kebutuhan Industrial akan Tetapi Berjalannya waktu Engine ini juga di Gunakan untuk Keperluan Lain dan di sesuaikan dengan Kebutuhan Peralatan yg akan di Gunakan. Sebagai Contohnya Engine ini Banyak Sekali Di gunakan untuk : Mesin Penggerak kapal Nelayan ; Genset Kapal ; Genset untuk Keperluan di darat ; Engine Untuk Industrial spt Pompa Air maupun Pompa Lumpur.
Engine Mitsubishi ini Seringkali di Gunakan Untuk Berbagai aplikasi dan Kebutuhan dengan Berbagai macam alasan ; Salah satu alasan yg Paling terkenal dan Sering di Dengar adalah karena Engine ini sangat mudah di Modifikasi ; Perawatan yg mudah dan Murah dan Spart Part yg Mudah di Dapatkan di manapun Sekalipun itu adalah daerah Yg Terpencil.
History ( Back Ground ) Dari Genset Tersebut Di atas :
Tahun Produksi 2006 ; Bekas Pemakaian Pabrik dan Hanya Sebagai Backup Power saja dengan Perawatan Berkala yg Rutin ; Hour Operation Masih Rendah ; Original Analog Control Panel ; Local Coupled ; Radiator yg Besar dan Multiply core ; Dalam Kondisi Prima dan sangat Terawat\bersih ; Siap untuk Test Run dan Loadbank\Performance dan Di Pakai untuk Menjawab Kebutuhan Power.
Detail Specification and Data Sheet :
Engine S12A-PTAA ; Turbocharged Air-to-Water With Intercooler ; 12 Cylinder Inline Engine ; Direct Injection ; 4 Stroke ; 4 Valve\Cylinder ; Mechanical Unit Injector ( MUI ) ; Governor By Toho/ Woodward ; Bore x Stroke : 150 x 160 mm ; Displacement : 33.93 Liter\33.000cc ; Compression Ratio 14.5 : 1 ; Oil Capacity 140 liter ; Watercooled ; Generator Leroy Somer ; 1500 Rpm ; 50 Hz ; 220/380 Volt ; 3 Phase ; Pf 0,8. Dengan Kapasitas 800 Kva Prime Rating atau 640 Kw Prime Rating.
Scoupe of Supply :
Analog Control Panel atau Digital Control Panel By Deepsea ( Sebagai Opsi tambahan Accesories Aftermarket ) ; Sebagai Opsi Tambahan; Industrial Muffler c\w Flexible Muffler ; New Battery c\w cable battery ; Without MCCB And Daily Tank as an accesories ; Sdh Di Painting Ulang sesuai Dengan Warna Pabrikan aslinya atau Bisa Di Rubah Warna Catnya sesuai dengan Permintaan Customer ; Performance Test dengan Menggunakan Loadbank\Dummy Load di Workshop.
Garansi :
3 ( Tiga ) Bulan atau 500 Jam Operasional Mana Yg Tercapai Terlebih Dahulu Sejak Unit Di Kirim. Dan Cover Garansi Hanya Jasa Only di Luar Spare Part dan Tidak Termasuk dengan Kerusakan Genset yg Disebabkan oleh Kesalahan Operasional di Site maupun Force major.
Note And Important Information Related of This Unit
Engine Condition :
Hours Meter Sebelum Di Lakukan Perawatan Berkala di Workshop adalah di Bawah 7.150 Jam Dan Sudah di lakukan Inspection, Assesment dan Perawatan yg Meliputi : Kebocoran Oli, Kelayakan van Belt ; Alternator Charging ; Merge Test Generator ; Test Fungsi Proteksi Keamanan dari Panel Control ; Pengkabelan Ulang Wiring Hardness ; Injector, FIP, ( Fuel Injection Pump ) dan Turbo Sdh Di kalibrasi Ulang ; dll Sesuai Dengan Instruksi manual Mitsubishi Prosedure.
Penggantian : Oli Mesin ; Filter Oli ; Filter Solar dan Filter Udara dan Parts yg lain ketika di temukan kerusakan dan di ganti. Cranshaft ( Kruk As ), dan Camshaft ( Cam ) masih Standard Size ( Blm Oversize ) dan sdh Di Inspection, Assesment dan Di Ukur Ulang Disesuaikan dengan Standard Pabrikan Mitsubishi.
Perfomance :
Beban 80 % Dari Kapasitas Genset Baru ( Kapasitas Genset Baru 800 Kva\640 Kw atau 969 Ampere Pada RPM 1.500 : 100% load ) dan 80 % Beban Puncak Genset Bekas harus Tercapai ketika Di Test Load Bank dengan Perhitungan Beban adalah sbb : 800 Kva x 0,8 ( Pf ) = 1360 Kw x 0,8 ( 80 % : Beban maksimal Genset Bekas ) = 512 Kw atau 775 Ampere. Nilai 775 Ampere Di Dapat dari 512 Kw : 0,66 ( 0,66 adalah Hasil Dari akar √3 dan 3 adalah 3 Phase ). Dan ini adalah Rumus atau Formula untuk Menghitung Nilai Beban Puncak - Genset Second.
512 Kw atau 775 Ampere adalah Hasil Test dari Beban Puncak Genset Second Yg Harus Tercapai Dan Di Janjikan ketika Genset Tersebut di Test Dengan LoadBank dan LoadBank itu sendiri Menggunakan Pemanas ( Heater ) Dan Kipas Sebagai Pendingin Heater yg Memiliki karakteristik beban Induktif dan Resistif dengan Cosphi 1. ( Pf 1 ).
Harga :
For Further Information The Detail Price By Requested and Detail Tehnical Specification, You Can Click The Title Below That Picture\Photo - Untuk Informasi Lebih Lanjut mengenai Harga dapat Menghubungi Kami Via Contact\Whatsapp ( WA ) dan Untuk Spesifikasi Tehnis anda dapat klik pada judul di Bawah Foto.
